Flocking

Boids (Reynolds 1987) with the gains and limits of pymapf's Boids, the library's most GPU-friendly family: one thread per agent, a brute-force O(n²) neighbour scan, and almost nothing for the host to do. Conditions for the page: agents start uniformly in a square scaled to hold density constant, 200 timesteps, seeds {0, 1, 2}, medians with min–max bands. The CPU axis stops at 2048 agents (the O(n²) pairwise NumPy temporaries are the limit); CUDA continues to 8192. pymapf's swarm module shares the sequential-update semantics discussed on the velocity obstacles page, so it is likewise not wall-clock-compared.

Scaling

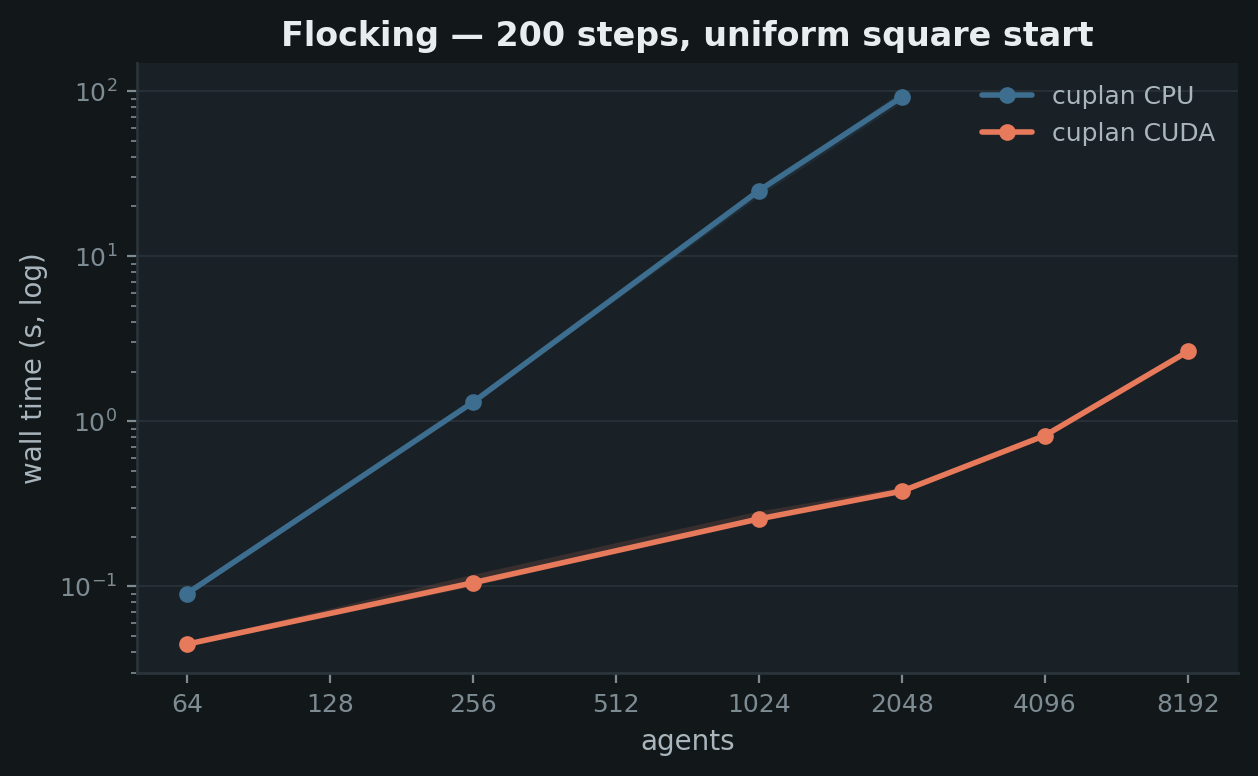

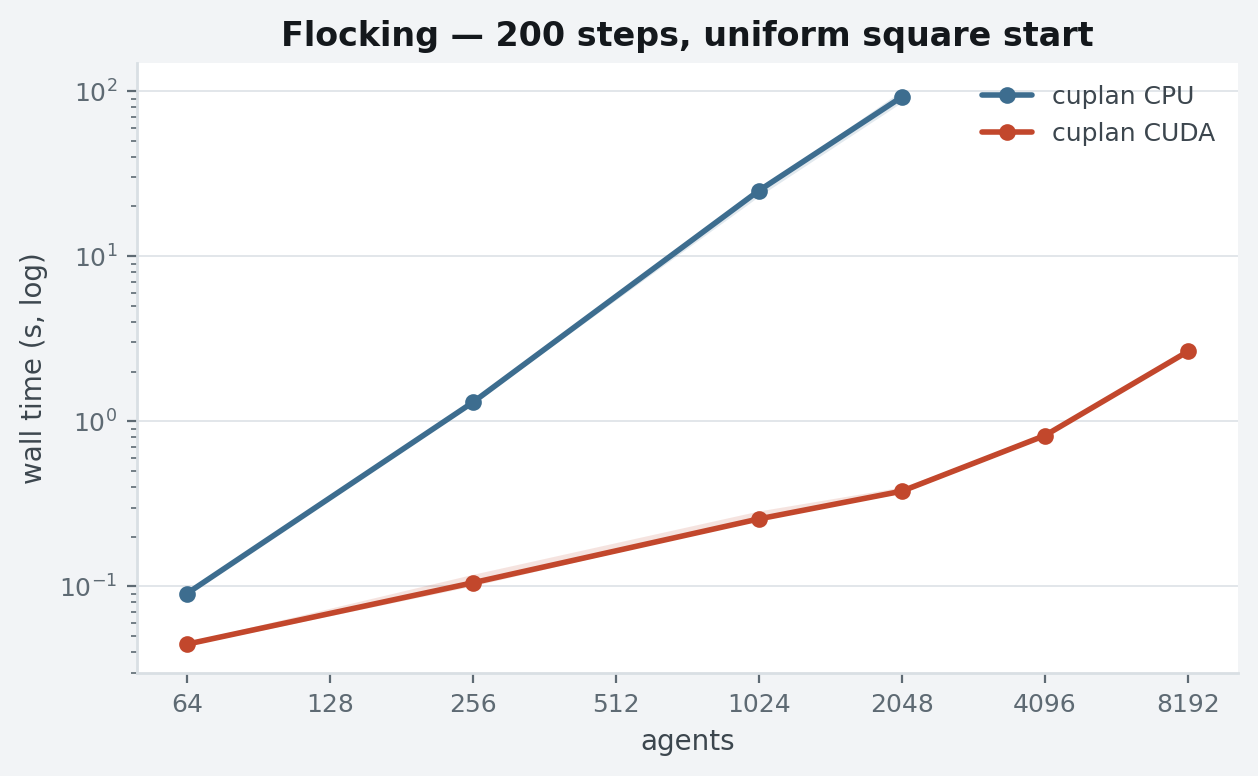

Median wall time for 200 steps, log–log, 64–8192 agents.

agents	cuplan CPU	cuplan CUDA	ratio
64	0.090 s	0.045 s	2.0×
256	1.30 s	0.105 s	12×
1024	24.9 s	0.256 s	97×
2048	92.2 s	0.377 s	245×
4096	— (capped)	0.819 s	—
8192	— (capped)	2.65 s	—

This is the largest speedup in the library, and the shape explains why. The CPU materializes every pairwise offset as an (n, n, 2) array — at 2048 agents that is six ~100 MB temporaries per step, so the line climbs as O(n²) with a cache-miss constant on top. The CUDA kernel gives each agent one thread that scans the swarm from registers: work is the same O(n²), but there are no temporaries at all, and until a few thousand agents the A2000 simply is not full — visible in the throughput panel as rising agent-steps/s, peaking around 1.09 M at 2048 agents. Past saturation the per-thread scan length keeps growing, so throughput eases back down (0.62 M at 8192) and the curve settles into parallel O(n²) growth.

Even the smallest swarm measured (64 agents) is already past this family's CPU/CUDA crossover — a 200-step run amortizes launch overhead 200 times, unlike a single batched-BFS build.

The raw CSV records the Vicsek polarization at the final step as a behaviour check, and it is worth being precise about what agreement means here. Both backends implement the same synchronous update, but they sum the neighbour contributions in different orders, and 200 steps of a chaotic system amplify that. On 11 of the 12 instances both backends ran, the final polarizations agree to a relative difference under 1.3 × 10⁻⁵; on the twelfth (2048 agents, seed 0) they differ by 1.1%. That is divergence from floating-point associativity, not a semantic difference — unlike the MAPF families, where the two backends return bit-identical plans because the outputs are integers. If you need reproducibility across backends in this family, pin the backend rather than the seed.
