Multi-agent path finding
you can watch.

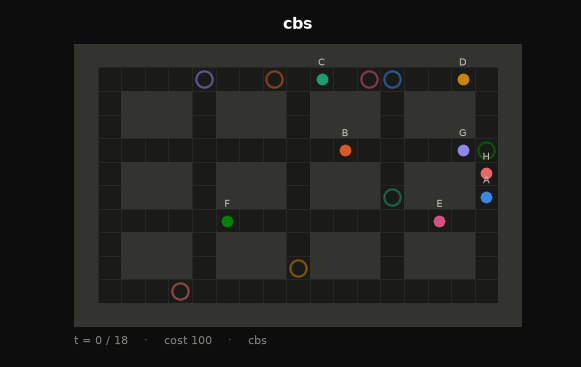

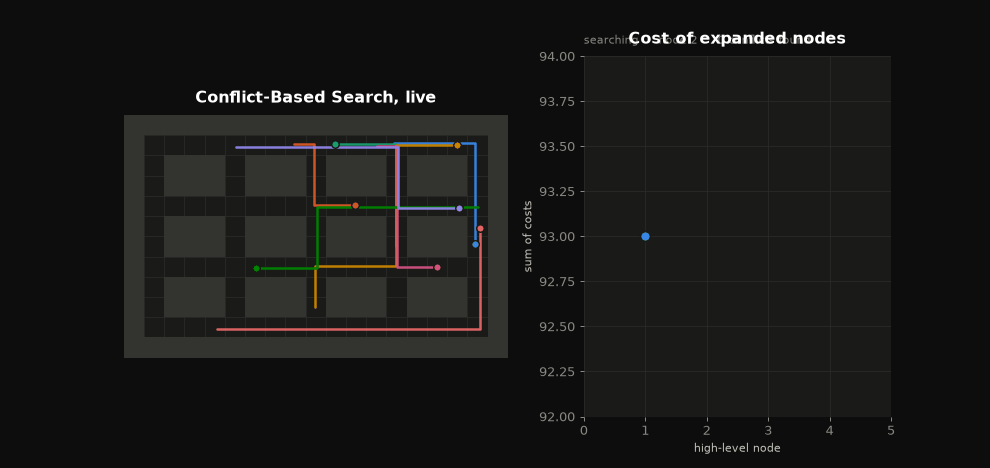

PyMAPF plans conflict-free routes for fleets of agents on a grid. This page runs the library itself — compiled to WebAssembly — so you can edit a map, launch a solver, and watch conflict-based search discover and resolve every collision in real time.

Open the playground View the source

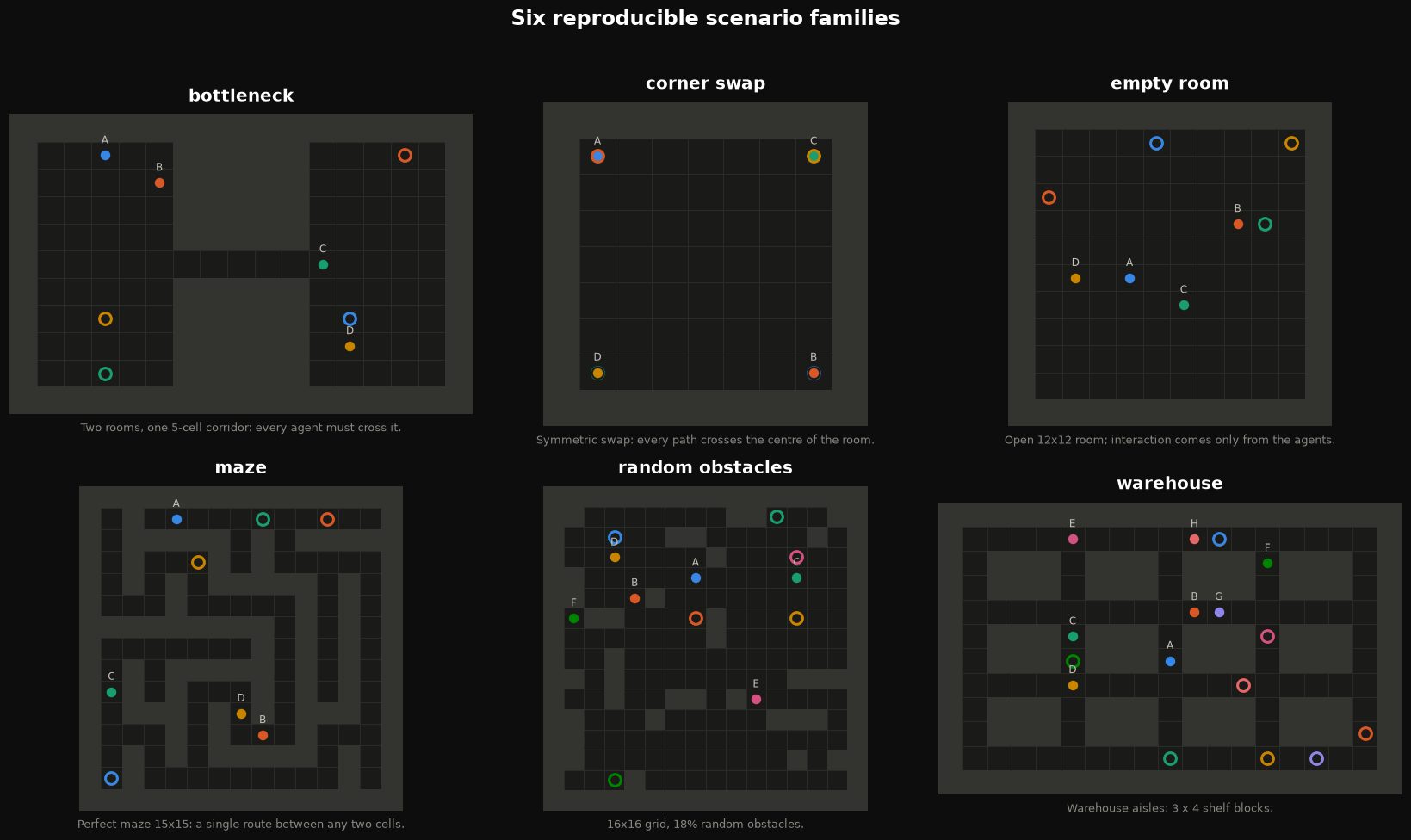

6 solvers: CBS, weighted CBS, LaCAM, PIBT, LNS, prioritized 6 reproducible scenario families IPPO / MAPPO scored against the optimum 0 runtime dependencies in the core every algorithm referenced

Playground

Pick a scenario or paint your own walls, choose a solver, and hit run. The search animates as it happens: every ✕ is a collision the planner found and had to design around.

6
0
1.5
Python runs the actual pymapf source in a worker. JS is an exact port used while Pyodide downloads.
Click or drag on the grid to add and remove walls.
loading Python runtime…
click cells to toggle walls
t = 0
Sum of costs
—
Makespan
—
Nodes expanded
—
Conflicts resolved
—
Solve time
—
Valid plan
—

The code this just ran

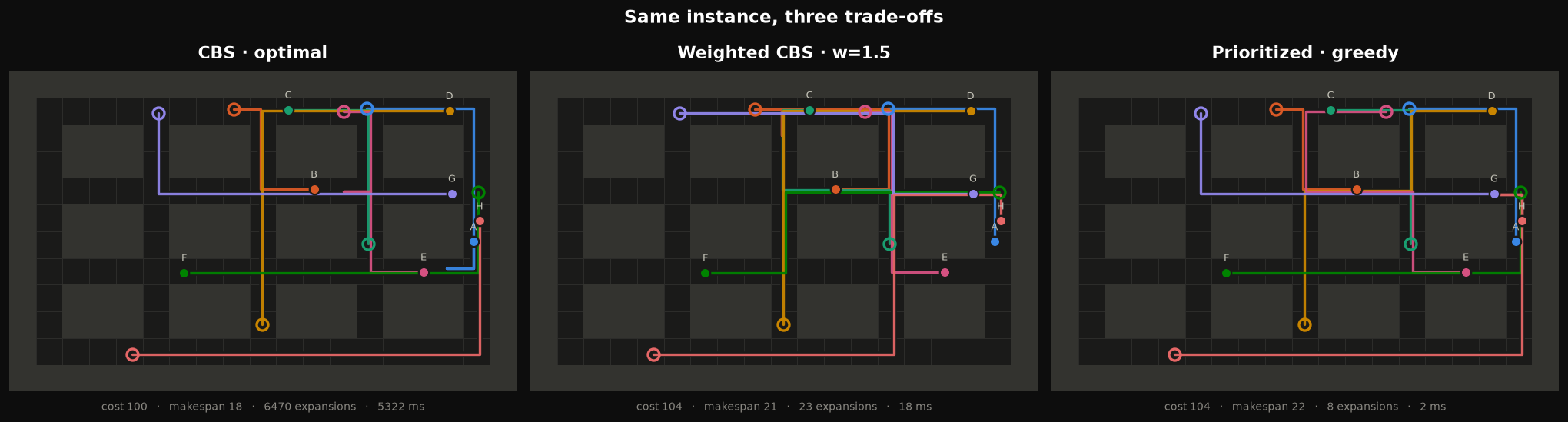

Three solvers, three trade-offs



      Every solver in PyMAPF implements the same MAPFSolver interface and
      registers itself by name, so swapping one for another is a string change.







CBS — optimal



          Searches a binary constraint tree, best-first on sum-of-costs, and returns a
          provably optimal plan. Exponential in the number of conflicts: on corridor-heavy
          maps it needs a time budget.







Weighted CBS — bounded



          Keeps a focal list of nodes within w × the best known bound and
          expands the one with fewest conflicts. Cost is guaranteed within a factor of
          optimal, typically an order of magnitude faster.







Prioritized — greedy



          Plans agents one at a time against the reservations of the ones before them.
          Milliseconds even for large fleets, but incomplete: a bad priority order can
          fail on a solvable instance.







LaCAM — complete



          Searches whole configurations, generating successors lazily with PIBT. Complete,
          and fast enough for thousands of agents. Measured here: it solved 6 of 7
          instances where PIBT livelocked and a solution provably existed.







PIBT — one step at a time



          Every agent proposes its best next vertex; conflicts are settled by priority
          inheritance, recursively. O(agents x degree) per timestep, and incomplete —
          it livelocks on about a quarter of our warehouse instances.







MAPF-LNS — anytime



          Destroy a small group of agents, re-plan them against the rest, keep the result
          if it is cheaper. Never returns worse than its initial plan, and takes PIBT's
          warehouse plan from cost 175 to 113 in two seconds.

















Learning, scored against the optimum



      The same instances are also a PettingZoo-parallel environment.
      IPPO and MAPPO train on them with no dependency beyond
      numpy — the default network is an MLP with hand-written backpropagation and Adam,
      gradient-checked against finite differences. A rollout returns a real
      pymapf.Solution, so a learned policy is scored by the same
      sum_of_costs and the same is_valid() as CBS.
      Every number below is read from
      rl-benchmark.json, written by
      scripts/train_rl.py — this page does not restate it.

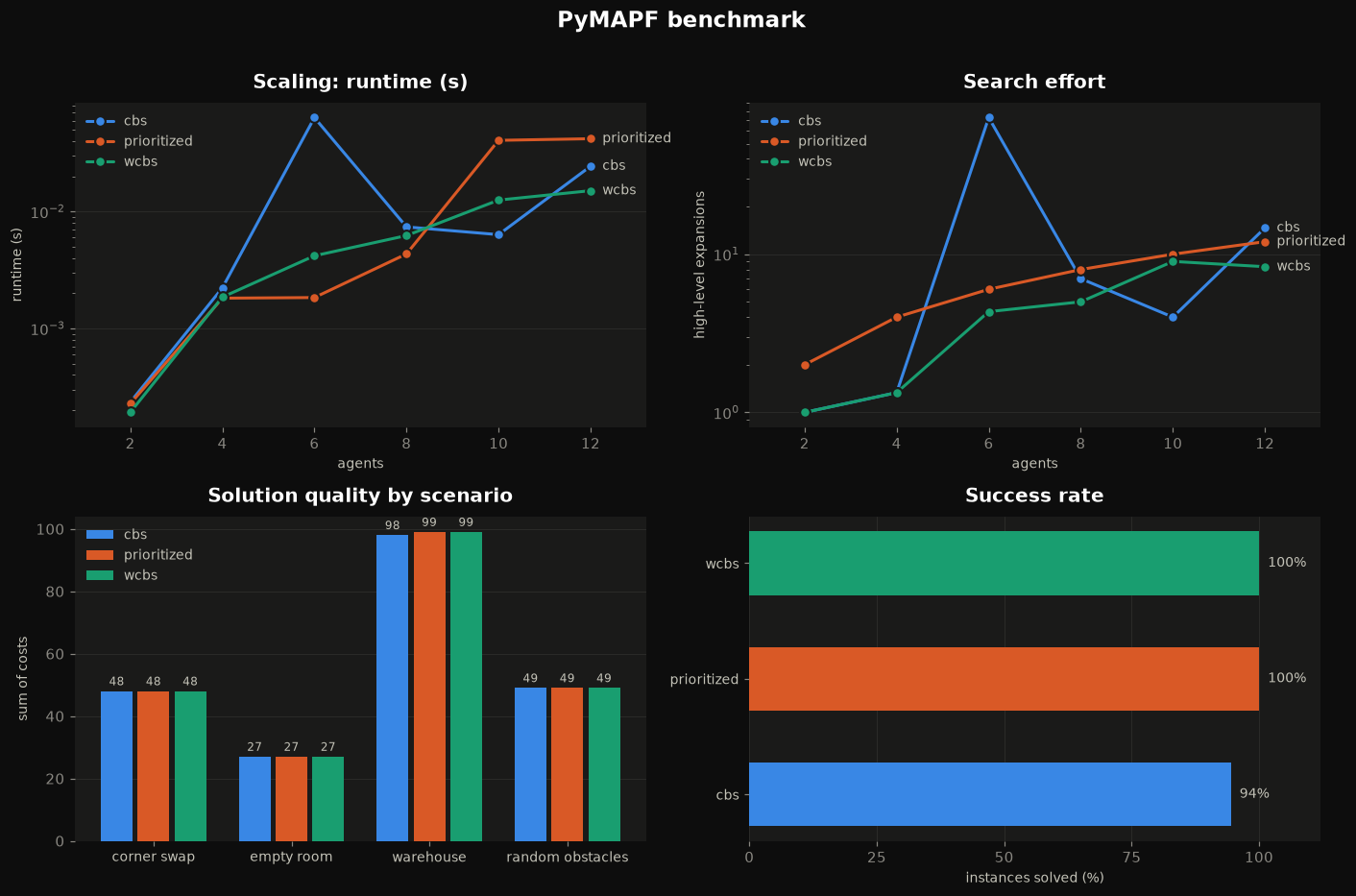

Benchmark



          Learners and planners on identical seeded instances.
          loading…















What it found


Three results, one of which is about evaluation rather than about MAPF.



          How you sample matters more than what trained it. The same
          weights score 45% solved at 1.11× optimal under argmax, and 100% at
          2.94× when sampled. Papers that do not state their action selection
          may not be comparable to each other.




          The greedy failures are two different bugs. Over 80 instances,
          33 failures split 70% collision-free period-2 orbits — the agents never touch,
          so the conflict rules are never invoked — and 30% period-1 freezes colliding
          every step, which is genuine livelock. Reporting one instance would have
          supported either story confidently.




          IPPO and MAPPO are indistinguishable here (45% vs 44%, both
          1.11×), matching the MAPPO paper's own conclusion. The learned policy is not
          competitive as a solver; as a heuristic inside a search it would be a
          reasonable thing to try — which is
          where the field went.




















Get it




# the solvers need nothing but the standard library
pip install pymapf

# plots, animations and live views
pip install "pymapf[viz]"

# the multi-agent RL layer — numpy only
pip install "pymapf[rl]"


import pymapf
from pymapf import viz

scenario = pymapf.build_scenario("warehouse", n_agents=8)
trace = pymapf.SearchTrace()
solution = pymapf.solve(scenario.to_problem(), "cbs", observer=trace)

print(solution.sum_of_costs, solution.makespan)
viz.save(viz.plot_solution(solution, scenario), "plan.png")
viz.save_animation(viz.animate_solution(solution, scenario), "plan.gif")
